TRJ650 and TRJ4000 Series Large Bore Valve Stems
For off-the-road vehicles
| Extair No. |
A |
B |
a |
| mm |
mm |
deg |
| TRJ650-02 |
27.4 |
79.4 |
80 |
| TRJ651-02 |
27.4 |
119.0 |
90 |
| TRJ652-02 |
27.4 |
139.7 |
86 |
| TRJ653-02 |
27.4 |
63.5 |
80 |
| TRJ654-02 |
27.4 |
79.4 |
60 |
| TRJ655-02 |
27.4 |
79.4 |
74 |
| TRJ656-02 |
66.7 |
93.7 |
90 |
| TRJ657-02 |
27.4 |
101.6 |
80 |
| TRJ658-02 |
27.4 |
139.7 |
80 |
| TRJ659-02 |
50.4 |
88.9 |
90 |
| TRJ660-02 |
50.4 |
222.3 |
90 |
| TRJ669-02 |
27.4 |
63.5 |
90 |
| TRJ4000-4.5 |
27.4 |
114.3 |
90 |
| TRJ4000-6 |
27.4 |
152.4 |
90 |
| TRJ4000-7.5 |
27.4 |
190.5 |
90 |
| TRJ4000-8 |
27.4 |
203.2 |
90 |
| TRJ4000-9 |
27.4 |
228.6 |
90 |
| TRJ4000-10 |
27.4 |
254 |
90 |
| TRJ4000-20 |
27.4 |
508 |
90 |
| TRJ4000-24 |
27.4 |
609.6 |
90 |
| Any other lengths or angles can be ordered. |
TRJ661 Series Large Bore Valve Stems
For off-the-road vehicles
| Extair No. |
H |
A |
B |
a |
b |
| mm |
mm |
mm |
deg. |
deg. |
| TRJ661-02 |
27.4 |
47.7 |
114.3 |
82 |
8 |
| TRJ664-02 |
27.4 |
101.6 |
222.3 |
90 |
13 |
| TRJ667-02 |
27.4 |
76.2 |
190.5 |
90 |
11 |
| Any other lengths and angles can be ordered |
TRJ662 Series Large Bore Valve Stems
For off-the-road vehicles
| Extair No. |
A |
B |
C |
D |
E |
H |
a |
b |
c |
d |
| mm |
deg. |
| TRJ662-02 |
- |
356 |
114 |
149 |
13 |
27.4 |
90 |
- |
20 |
20 |
| TRJ663-02 |
- |
635 |
52 |
152 |
14 |
27.4 |
90 |
- |
8 |
8 |
| TRJ665-02 |
- |
813 |
52 |
151 |
24 |
27.4 |
90 |
- |
13 |
13 |
| TRJ666-02 |
83 |
511 |
111 |
158 |
28 |
27.4 |
84 |
6 |
31 |
31 |
| Any other lengths and angles can be ordered |

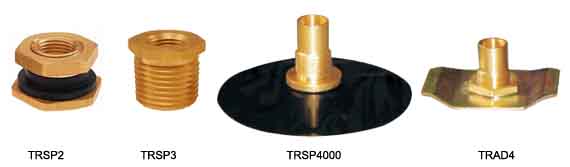

Spuds For Swivel-Type Valves
For off-the-road vehicles
| Extair No. |
Description |
| TRSP2 |
clamp-in tubeless spud |
| TRSP3 |
large bore screw-in spud |
| TRSP4000 |
round vulcanize onbase tube spud |
| TRAD4 |
standard to large bore adapter |
Turret Type Large Bore Tubeless Valves — TRJ690 Series
For planetary gear wheels
| Extair No. |
A (mm) |
B (mm) |
C (mm) |
D (mm) |
a (deg.) |
b (deg.) |
| TRJ690 |
32 |
119 |
59 |
14 |
28 |
28 |
| TRJ692 |
32 |
119 |
59 |
14 |
18 |
18 |
| TRJ693 |
22.5 |
127 |
62 |
25 |
60 |
60 |
| TRJ695 |
20.5 |
105 |
56 |
25 |
50 |
50 |
| TRJ696 |
27 |
108 |
52 |
23 |
42 |
42 |
Turret Type Large Bore Tubeless Valves — TRJ691 Series
For planetary gear wheels
| Extair No. |
A (mm) |
B (mm) |
a (deg.) |
| TRJ691 |
16 |
84 |
18 |
| TRJ694 |
20 |
89 |
28 |
Screw-on Large Bore Tube Valves
Fits TR SP1000 spud
| Extair No. |
A (mm) |
B (mm) |
a (deg.) |
| TRJ1014A/AB |
49 |
- |
- |
| TRJ1076A/AB |
106 |
- |
- |
| TRJ1076B/BB |
29 |
82 |
86 |
| TRJ1076C/CB |
39 |
73 |
90 |
| TRJ1076D/DB |
52 |
59 |
90 |
| TRJ1076E/EB |
35 |
76 |
88 |
| TRJ1175A/AB |
134 |
- |
- |
| TRJ1175B/BB |
32 |
108 |
82 |
| TRJ1175C/CB |
35 |
105 |
88 |
| TRJ1078A/AB |
151 |
- |
- |
| TRJ1078B/BB |
35 |
117 |
82 |
| TRJ1078C/CB |
29 |
123.5 |
90 |
| TRJ1179A/AB |
167 |
- |
- |
| TRJ1079B/BB |
35 |
133 |
88 |
| TRJ1079C/CB |
29 |
133 |
86 |
| TRS P1000 |
valve spud |
| B: with bridge washer |
Super Large Bore Tubeless Valves
| Extair No. |
Description |
| TR L870 |
straight type super large large bore valves |
| TR F910 |
straight type super large large bore valves |
| TR SPB |
large bore spud |
| TR CH8 |
large bore core housing |
| TR CH16 |
large bore core housing |
